A Practical Guide by WRProfiles
When designing a high-quality linear lighting system, the aluminum LED profile is only part of the solution. The PC diffuser (cover) plays a decisive role in light performance, installation efficiency, and overall visual effect.
At WRProfiles, we’ve worked with lighting distributors and contractors worldwide, and one thing is clear: choosing the wrong diffuser can compromise even the best lighting design.
This guide will help you select the right PC cover with confidence.
1. What Does a PC Diffuser Actually Do?
A polycarbonate (PC) diffuser is not just an accessory — it directly impacts the final lighting result.
Its key functions include:
- Protection
Protects LED strips from dust, moisture, and physical contact - Light Diffusion
Reduces visible LED dots and creates a more uniform light output - Visual Finishing
Enhances the overall appearance of the fixture, giving it a clean and professional look
2. Installation Method: Snap-In vs. Slide-In
The installation method significantly affects labor time and on-site efficiency.
Snap-In (Press-Fit) Covers — Recommended for Most Projects
Most modern LED profiles use snap-in PC covers.
How it works:
The diffuser is pressed directly into the aluminum channel until it locks into place.
Advantages:
- Fast and tool-free installation
- Ideal for long linear runs
- Can be installed after the aluminum profile is mounted
- Suitable for single-person installation
A well-designed system (like those from WRProfiles) ensures a secure fit without being overly tight, balancing ease of installation with long-term stability.

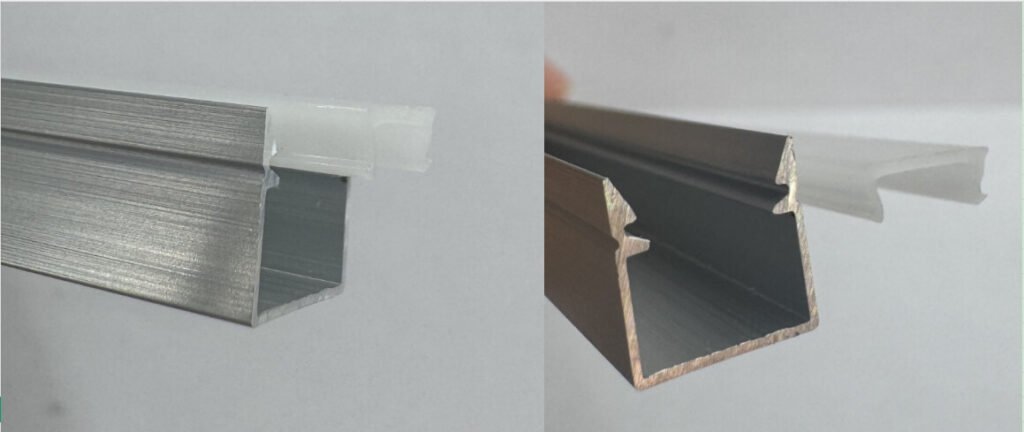

Slide-In Covers — Suitable for Specific Applications
Some profiles still use slide-in diffusers, inserted from the end of the channel.
Limitations:
- Difficult to install for long lengths (e.g., 2–3 meters)
- Requires open space at one end
- Less convenient in recessed or wall-mounted installations
Recommendation:
Use slide-in systems only when required by the profile design or for specialized applications.
3. Choosing the Right Diffuser Finish
Different finishes produce very different lighting effects. The choice should depend on your project requirements rather than appearance alone.
| Finish Type | Typical Light Transmission | Best Use Case |
|---|---|---|
| Opal / Milky | ~50–70% | Smooth, dot-free lighting (neon-like effect) |
| Frosted / Semi-Clear | ~70–85% | Balanced diffusion and brightness |
| Clear / Transparent | ~90–95% | Maximum brightness where LEDs are concealed |
⚠️ Note: Actual performance depends on LED density (LEDs per meter) and profile depth — not just the diffuser.
4. Material Matters: PC vs. PVC
Not all diffusers are made equal.
Polycarbonate (PC) — Industry Standard
High-quality PC diffusers offer:
- Excellent impact resistance
- Good thermal stability
- Long-term clarity with UV resistance
- Consistent performance in professional installations
PVC — Low-Cost Alternative
PVC covers are cheaper but come with trade-offs:
- Prone to yellowing over time
- Lower heat resistance
- Increased brittleness in long-term use
At WRProfiles, we only use UV-stabilized polycarbonate to ensure durability and consistent light performance across projects.
5. Practical Tips for a Perfect Fit
To avoid installation issues and ensure optimal performance:
- Check Compatibility
The diffuser legs must match the internal groove of the aluminum profile - Allow for Expansion
For long runs, leave a small gap (approx. 1–2 mm) to accommodate thermal expansion - Test Before Installation
Always test a short section before full installation to confirm fit and finish
6. Final Thoughts
Selecting the right PC diffuser is not just about appearance — it directly affects installation efficiency, lighting quality, and long-term reliability.
For most applications, snap-in PC covers combined with high-quality polycarbonate material provide the best balance of performance and usability.
At WRProfiles, we design our aluminum LED profiles and diffusers as a complete system — ensuring compatibility, ease of installation, and professional results for every project.
